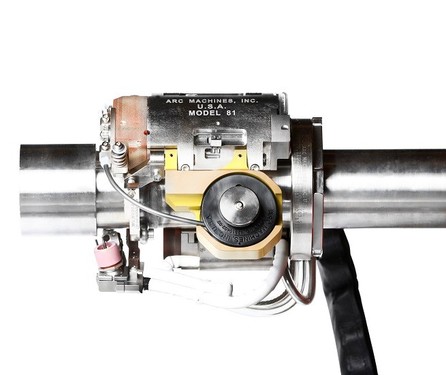

Model 81 Small Pipe Weld Heads

The Model 81 is a full function orbital pipe weld head featuring programmable Arc Voltage Control, Torch Oscillation, onboard Wire Feeder and Travel in a very compact package.

The Model 81 in its standard configuration will weld pipe from 1.9 in. (48 mm) OD to 5.563in. (142 mm) OD with as little as 1.750in. (45 mm) radial clearance and 6.325in. (161 mm) axial clearance.

The Model 81 is used in a wide variety of applications that require high quality welding results in applications with limited axial and radial clearances. Common uses for the Model 81 include shipbuilding and high-pressure steam piping in fossil fuel power plants and many other applications.

The unique clamping assembly of the Model 81 weld head increases production rates by minimizing the mounting and dismounting times of the weld head to as little as 30 seconds each.

Ordering
M81 WELD HEAD TOP ASSY SGL ENTRY TORCH STD
13810106-01

M81C WELD HEAD TOP ASSY SGL ENTRY TORCH STD
13810106-02

M81C WELD HEAD TOP ASSY TILT
13810106-03

M81C WELD HEAD TOP ASSY 2 Cameras DIGITAL
13810106-04

M81C-415 WELD HEAD TOP ASSY SGL ENTRY TORCH STD
13810145-02

M81C-415 WELD HEAD TOP ASSY TILT
13810145-03

Fact Sheet
