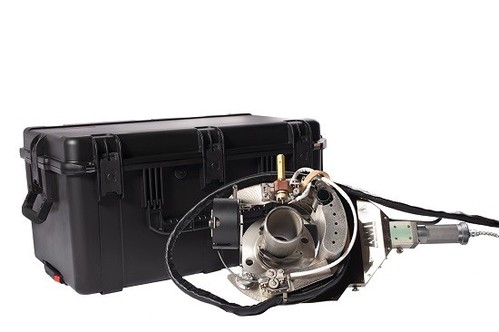

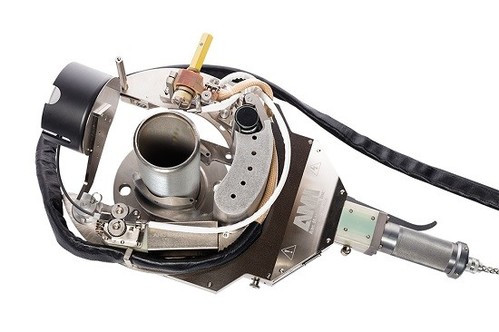

Model 79 Series Weld Heads

The Model 79 series of high durability, “full function” weld heads are designed for fabrication shop and field process pipe welding applications. The Model 79 weld heads have a unique integral clamping system which gives each weld head the ability to adjust for different pipe and tubing diameters in seconds, thereby eliminating the requirement for specific sized guide rings. The M79 weld head series can accommodate a range of pipe sizes from 0.75 in. OD to 6.625 in. OD (19 mm to 170 mm) and wall thicknesses up to 0.75 in. (19 mm).

Ordering
M79A-6625 WELD HEAD TOP ASSY
13790100-02

M79A-6625 WELD HEAD TOP ASSY MIRRORED TORCH
13790100-05

M79A-3500 WELD HEAD TOP ASSY
13790103-02

M79-2375 WELD HEAD TOP ASSY
13790109-01

M79-2375 WELD HEAD TOP ASSY ON BOARD WF
13790109-02

M79A-4500 WELD HEAD TOP ASSY
13790124-01

M79A-6625 WELD HEAD TOP ASSY HORIZ WIRE SPOOL
13790144-01

M79A-4500 WELD HEAD TOP ASSY 2 Cameras/MOTORIZED WIRE MANIP
13790148-01

M79A-2375 WELD HEAD TOP ASSY 2 Cameras DIGITAL
13790150-01

M79A-2375 WELD HEAD TOP ASSY 2 Cameras DIGITAL
13790150-02

M79A-4500 WELD HEAD TOP ASSY 2 Cameras DIGITAL AVC TILT
13790151-01

M79A-6625 WELD HEAD TOP ASSY 2 Cameras DIGITAL MOTOR WIRE MANIP
13790152-01

M79-1500 WELD HEAD TOP ASSY
13790146-01

Fact Sheet

Orbital welding can feel intimidating, but we simplify the process by assessing your needs, planning the right equipment, and calculating ROI. We provide onsite support, operator training, and preventative maintenance — staying shoulder to shoulder with you through every challenge to ensure long-term success.
