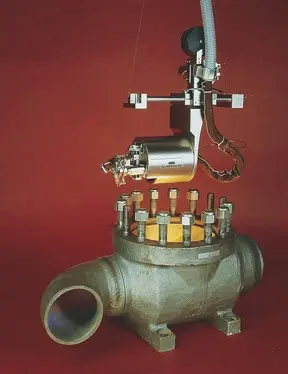

Model 72 Valve Repair Weld Head

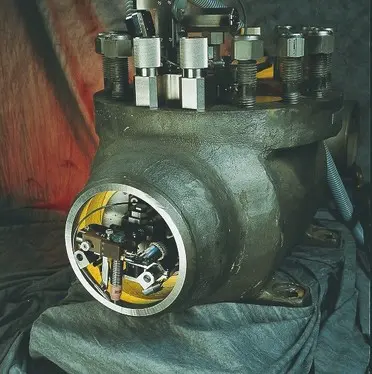

The Model 72 is designed for welding, rewelding, or cladding eroded valve-to-pipe welds or for internal repair of many valve types from 8 in. through 24 in. Its modular features allow access through the bonnet without cutting or removal of valve welds. The head design allows installation where radial and axial access clearance to the valve is restricted.

The Model 72 features include multi-pass rotation, 100 IPM wire feed, AVC, cross-seam oscillation and axial position adjustment over a wide area. 300 ampere torch features leading and trailing edge direct-video weld vision using patented AMI arc-light filtration. Recommended for use on I.D. weld repairs, inlay applications along the bore or seat hardfacing and cladding.

Ordering
M72-415 WELD HEAD TOP ASSY 2 Cameras DIGITAL
13720100-03

Fact Sheet

Orbital welding can feel intimidating, but we simplify the process by assessing your needs, planning the right equipment, and calculating ROI. We provide onsite support, operator training, and preventative maintenance — staying shoulder to shoulder with you through every challenge to ensure long-term success.
