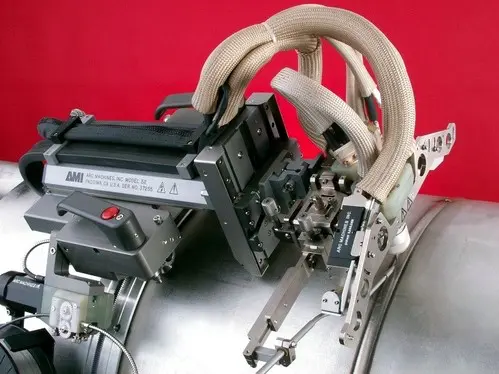

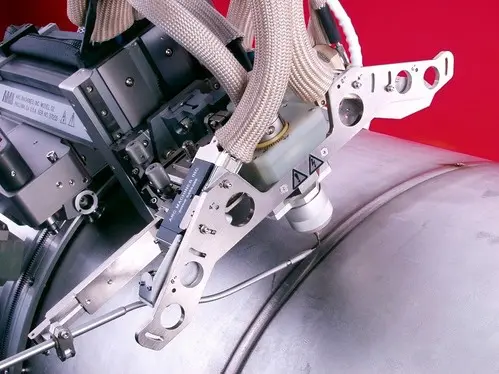

Model 52 Heavy-Duty Precision Weld Head

The Model 52 is engineered and designed for high-deposition circumferential and flat welding in heavy industrial and harsh field applications where quality requirements are stringent and the use of the GTAW process is beneficial. It is intended for all-position, automated welding of pipe, plate or fittings using the Cold or Hot Wire Feed GTAW (TIG) process.

Ordering

M52 WELD HEAD TOP ASSY DUAL 8IN-WF NO-TORCH
13520100-01
M52 WELD HEAD TOP ASSY SGL 8IN-WF 4IN-AVC NO-TORCH
13520100-02
M52 WELD HEAD TOP ASSY SGL 8IN-WF 6IN-AVC NO-TORCH
13520100-04
M52 WELD HEAD TOP ASSY DUAL 8IN-WF 12IN-OSC NO-TORCH
13520100-05
M52 WELD HEAD TOP ASSY 8IN-WF 8IN-AVC 100IPM TILT NO-TORCH
13520100-06
M52 WELD HEAD TOP ASSY TILT AVC 8IN WIRE SPOOL
13520108-02

Accessories & Parts

Torch-NGT-HW Top Assy, 8 in. 3/8W 2 Cameras Digital
13520733-01
Torch-P Top Assy, M52 2 Cameras Digital
13520706-03

Fact Sheet

Orbital welding can feel intimidating, but we simplify the process by assessing your needs, planning the right equipment, and calculating ROI. We provide onsite support, operator training, and preventative maintenance — staying shoulder to shoulder with you through every challenge to ensure long-term success.
