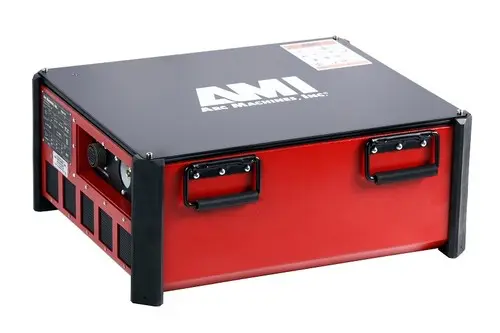

Model 501 Hot Wire Welding Power Supply

The Model 501 Hot Wire Power Supply is designed to increase the deposition rate of the filler wire in the weld joint by resistively preheating it.

The increased deposition rate is achieved by pre heating the wire close to its melting point before its introduction into the weld puddle. The higher deposition rate leads to increased productivity in welding and cladding operations. Moreover, by preheating the wire before introducing it in the puddle, all moisture from the wire surface is removed, which leads to an improved weld quality.

The Hot Wire TIG welding process can provide deposition rates that are competitive with the MIG process, and produce superior quality weldments.

The Model 501 is a high-precision power supply using advanced technology to increase welding productivity. To minimize magnetic interference, the Model 501 uses AC current to preheat the wire. This current is far more precise than competitive machines, being very close to a true sine wave. As an option the Model 501 can be ordered with a DC current output module.

Ordering

M501 POWER SUPPLY TOP ASSY 250A HOT WIRE CE
13E010100-02
M501 POWER SUPPLY CE 250 AMP HOT WIRE, OEM
13E010100-03

Fact Sheet
